Wieland Safety PLC

samos®PRO COMPACT

The safety control of the next generation

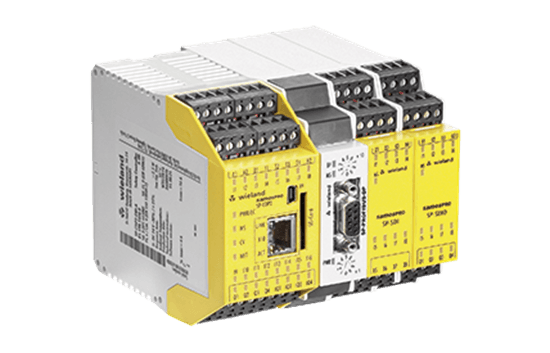

With the highest power in the smallest space, the samos®PRO COMPACT programmable safety controller sets a new standard in the area of machine safeguarding control.

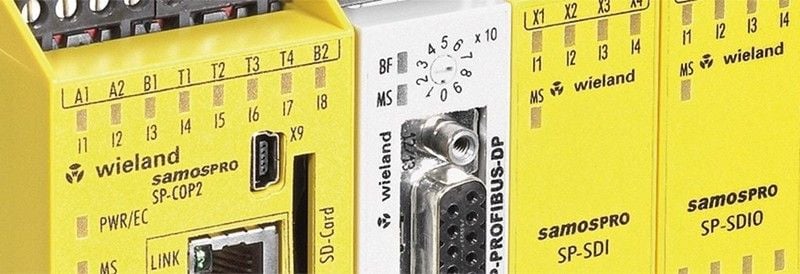

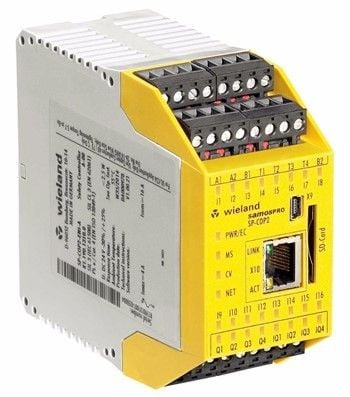

The samos® PRO COMPACT base modules offer up to 20 safe inputs and 8 safe outputs in a width of only 45 mm. They include integrated USB, Ethernet and Industrial Ethernet communication. They are flexible and programmable via the free programming tool samos®PLAN 6, which includes integrated simulation and logic analysis tools.

Through its extensive functionality, the compact design and the user-friendly software, these modules can already cover many different safety applications optimally and cost-effectively. With no extra effort the new modules can be quickly integrated in Ethernet-based networks, so that solutions can be implemented for remote maintenance. If necessary, the new modules from the COMPACT-family can be extended up to 168 safe inputs / outputs. Therefore samos®PRO COMPACT is also perfectly suited for medium to large applications.

samos®PRO COMPACT PLUS modules offer extended functionality for safe motion monitoring and for press applications.

More:   http://www.wieland-safety.com/feature/programmable-controllers/samos-pro-compact
