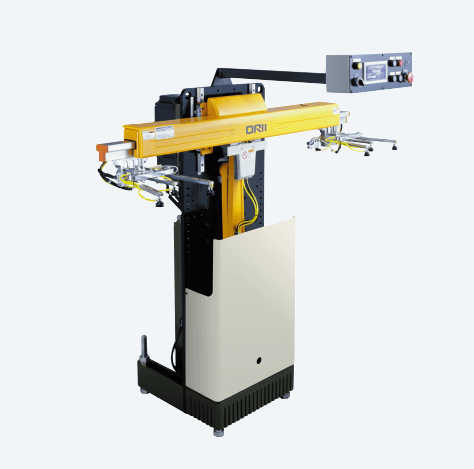

RYN 2 Axis Press Transfer System

Offering various feedback patterns via numerical control (NC)

The built-in alternating current (AC) servo motor expands the flexibility for various work pieces and processing stage. In addition, NC provides previously unattainable feedback patterns. The already excellent operability has also been improved. Operations on both the main and sub operational panels are easier to use and better than ever, with an LCD touch panel for easy viewing and our exclusive interface system that makes teaching the robot motions almost effortless.

Built-in AC servo motor

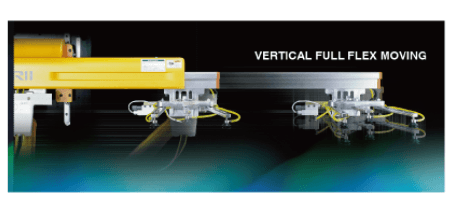

Integration of the AC servo motor enables the user to set the height and transfer levels for the left and right sides, within the respective ranges of movement, with up to 99 settings. The freedom to modify the height of the die and the height of insertion and retrieval greatly increases the flexibility for work pieces and processing stages.

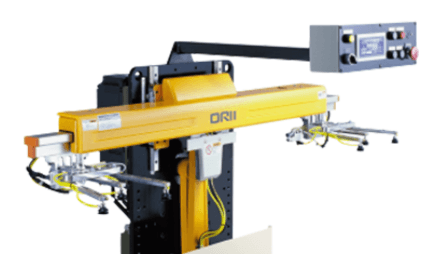

Well-honed operation panel brings relief to the workplace

Our stand-alone main operation panel employs a large, easy-to-see LCD touch panel, designed to facilitate careful operations according to displays and prevent user error. The sub operation panel, positioned for easy use, is also based on a top-level operability.

One-touch removal system (Option)

The one-touch removal method introduces a tool-free system that replaces the bolted on method, trimming the work required for adjustments.
