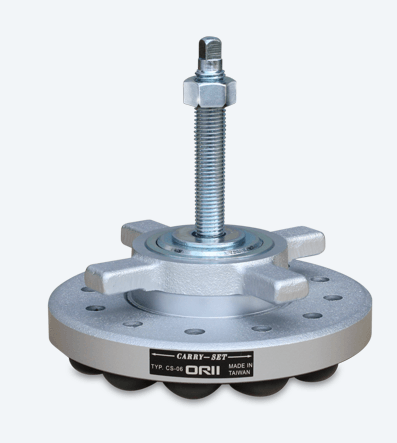

CS Series
Unlike conventional machines that are secured to the foundation with an anchor bolt, this product comes with a carry set.
This enables immediate operation after delivery and free changing of the layout.
The machinery can be moved using the internal ball.
Anti-vibration rubber separated into 12 parts enables excellent vibration prevention.

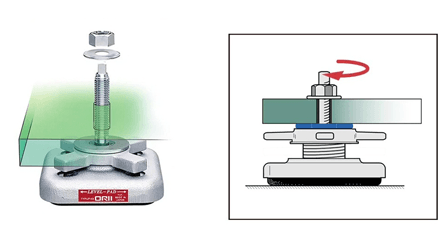

Turn the cross-shaped handle for easy level adjustment.
Fine adjustment can be easily performed due to the large screw diameter of the jack part.

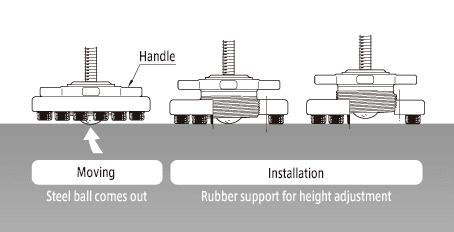

Simple moving and installation with a handle
Move this product by turning the handle in the clockwise direction and grounding the ball. To install it, raise the ball and perform level adjustment while using the rubber cushion.
