UP-ACTING HYDRAULIC PRESSES

Detailed Features.

• Incorporates monitored hydraulic valves
• Complies with the Canadian Z142-02 code for Power Press Operation for hydraulic presses and US ANSI/OSHA B11.2-1995(R2000).
• Attaches directly into the existing hydraulic system.
• Includes pressure relief allowing safe placement between pump and primary valves.
• Two (2) assemblies are required
• The HRASB-06-1000 assembly is static and dynamically tested prior to shipping.

Included in the package:

            (Inclusions will vary according to needs of specific presses)

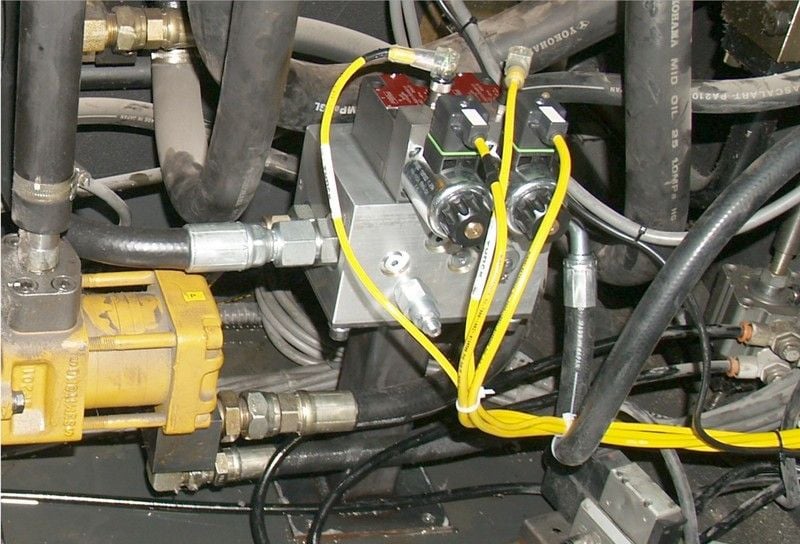

(1)      High strength aluminum manifold block

(2)      Electric monitored directional safety lock valve, 4-way, 2-position, D03

(AR)   24 VDC solenoids

(1)      Manifold support bracket
