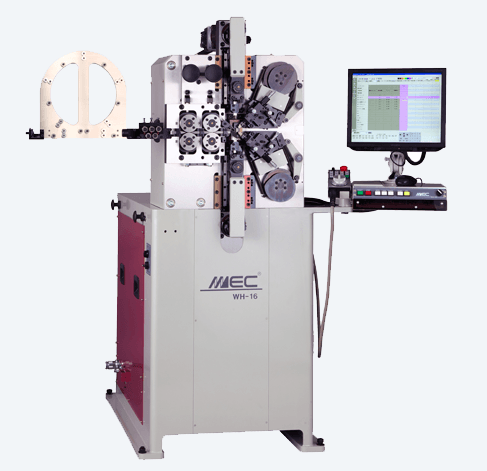

WH-16

Item Code: WH-16

A 7-axis, 2-point coiling machine with a maximum wire diameter of 1.6 mm and excellent cost-effectiveness.

Equipped with a freely oscillating rotary cut as a standard feature for high-speed production and high accuracy in a reduced preparation time.

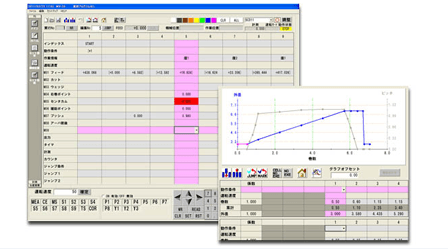

Dedicated MNO Program for Spring Production

-Easy operations for quicker preparation.

-High resolution for controlling the latest servo motors.

-Compatible with compression spring creation programs based on line graphs.

-Allows varied control based on measurement results, such as the pitch and diameter.

-Common program for both torsion machines and coiling machines.

-Includes a motor sensor system.

-Versatile production management screen and production data collection function.

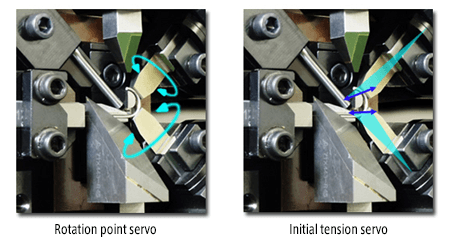

Newly-developed rotation point servo

Our new WH-16 point unit includes a rotating servo.
Select the adjustment method of your choice (1st pin or 2nd pin can be selected).

You can also select a different servo for both the 1st pin and 2nd pin and use them in conjunction.



5-point coiling machine with a wire diameter of 0.5 to 1.6 mm


-Enables easy setup and high-accuracy, high-speed production of springs.

-The clockwise/counterclockwise direction can be switched simply by configuring a setting in the program.

-An optional rotation point servo and initial tension servo can be added to the coiling point.

-The alignment of the cut tool and core does not require readjustment after being decided once.

-One-touch switching between oscillating cut and straight cut.

The oscillating cut bearing (oscillation) can be freely adjusted.

-An optional slip sensor is provided for detecting slips when feeding.

-Includes our newly-developed specialist MNO program for spring production, enabling simple and precise operations.

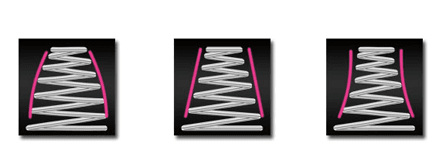

Taper synchronization constant
Enables the taper tilt to be managed with a value from 0 to 100.
Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100



Optional Equipment

-Initial tension servo (tilting operations)

-Rotation point servo (rotation operations)

IS-1 shape detection unit with camera

-Slip sensor to detect wire slips
