SH-3Ⅱ

Item Code: SH-3Ⅱ

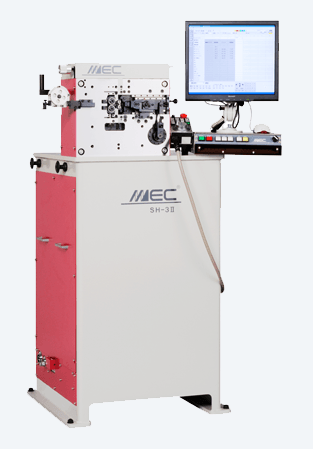

The SH-3, a multifunctional coiling machine with 1-point coiling, torsion attachment, and an initial tension servo, has further evolved. This coiling machine can now process an even greater range of torsion springs.



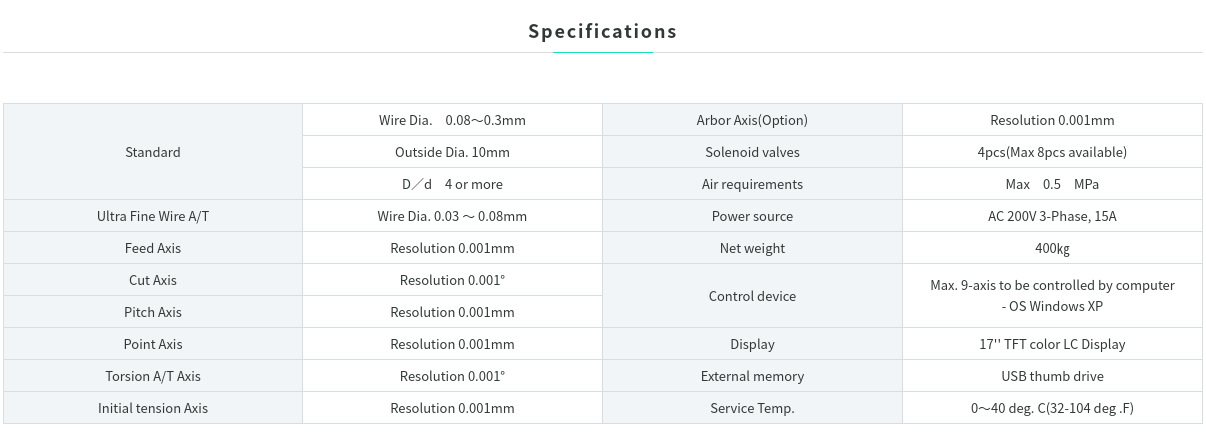

1-point coiling with a wire diameter of 0.08 to 0.3 mm

-Equipped with 8 standard axes: feed, cut, pitch, point, torsion, initial tension, coil front-back, and MSD-1.

-Easier setup and greater speed than previous models, as the cut axis and torsion axis are separated.

-Suitable for high-speed production of ballpoint pen springs, torsion springs, and elliptical springs in addition to standard cylindrical springs.

-Optional ultra-thin wire attachment can be used to coil springs with a diameter of 0.08 mm or less.

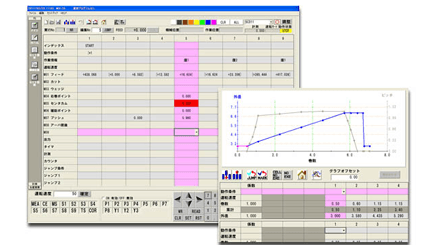

Dedicated MNO Program for Spring Production

-Easy operations for quicker preparation.

-High resolution for controlling the latest servo motors.

-Compatible with compression spring creation programs based on line graphs.

-Allows varied control based on measurement results, such as the pitch and diameter.

-Common program for both torsion machines and coiling machines.

-Includes a motor sensor system.

-Versatile production management screen and production data collection function.

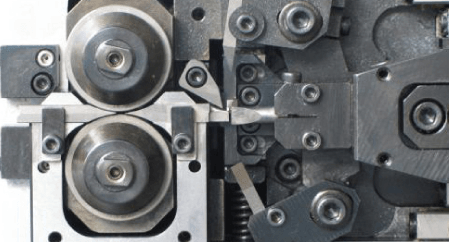

3 types of wire guides

The SH-3II has 3 wire guides with different lengths:

-Short guide with a guide length of 23 mm
Provides greater accuracy for short springs due to its shorter guide length, while retaining the same clearance length as a standard wire guide.

-Standard wire guide with a guide length of 30 mm
Enables use of all tools available for the previous SH-3 wire guide.

-Wire guide for ultra-thin wires with a guide length of 16 mm
Enables coiling of wires with a diameter of 0.08 mm or less.

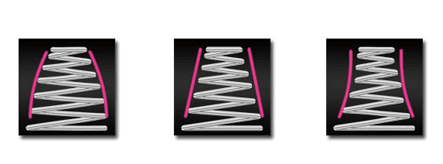

Taper synchronization constant

Enables the taper tilt to be managed with a value from 0 to 100.
Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.



Optional Equipment

-Ultra-thin wire attachment

-3-dimensional bending servo unit to improve stability and speed when creating antenna springs

-Capacitance level sensor

IS-1 shape detection unit with camera
